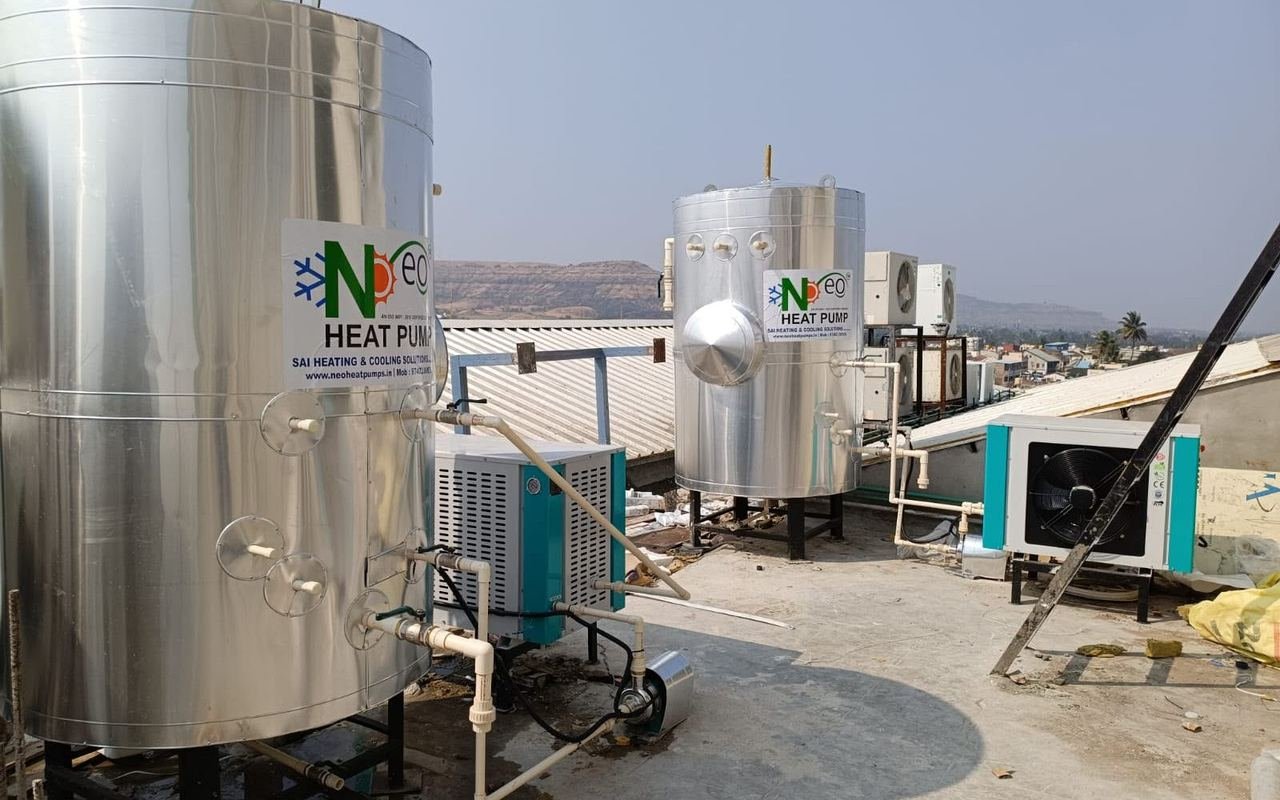

Vertical Tanks
Upright tanks for plant rooms and sites where floor space is tight.
Overview
Vertical tanks buy storage volume with height rather than floor area, which is usually what a plant room, terrace or utility yard has to spare. They also stratify better, which matters for hot water and heat pump systems.
We build vertical tanks on legs, skirts or structural frames, in any material we fabricate, with the diameter-to-height ratio set by your headroom.
Specification at a glance
- Capacity200 to 20,000 litres as standard. Larger capacities built to order.
- OrientationVertical
- InsulationOptional, specified per duty.
- ConnectionsNozzle schedule, sizes and positions built to your drawing
- FinishMill, brushed, polished or clad, specified per order
- TestingScope agreed at order stage and recorded
Dimensions, thicknesses and ratings are confirmed at engineering stage against your duty. We do not publish generic figures.
Key features
- Small floor footprint for constrained plant rooms
- Better thermal stratification for hot water duty
- Leg, skirt or structural frame supports
- Diameter and height set by available headroom and access
- Bottom outlet designed for full drainage
- Ladder and platform provision on taller units
What we can change
- Slim-diameter tall configuration for narrow spaces
- Short wide configuration for low-ceiling plant rooms
- Conical bottom on a raised frame
- Integrated support structure
- Multi-tank vertical arrays
Materials
- SS 304
- SS 316
- MS / carbon steel
- Galvanised steel
Where it is used
Typical applications for this tank type. Suitability for your specific duty is confirmed before we quote.
Technical datasheet. A downloadable datasheet is published here once an approved PDF exists for this product. In the meantime, tell us your duty and we will send written specifications for your case.
Enquire about vertical tanks
Send us the capacity, the medium and where the tank has to go. If you have a drawing, even better. If you have none of that yet, send what you do know — most enquiries start that way.
- Reply during working hours, Monday to Saturday, 9:00 am to 6:30 pm
- Tanks and Neo heat pump enquiries reach the same team
- Specification confirmed in writing before manufacture
Get a quote for Vertical Tanks
Two fields are all we need to start. Everything else is optional.
Thanks — your enquiry is on its way.
WhatsApp should have opened with your details filled in. Press send there and we will reply during working hours. If it did not open, call us on +91 96063 94105.
Common questions
Vertical if floor space is tight and stratification matters. Horizontal if headroom is the constraint. Send us the room dimensions and we will tell you which fits.
That is exactly the kind of thing to tell us before we start. We design around site access.
Legs, a skirt or a structural frame, chosen against the loaded weight and the floor.
Where routine access to top connections is needed, yes. We can include it.
Related products
Hot Water Storage Tanks
Insulated storage for heat pump, solar and boiler hot water systems.
View details

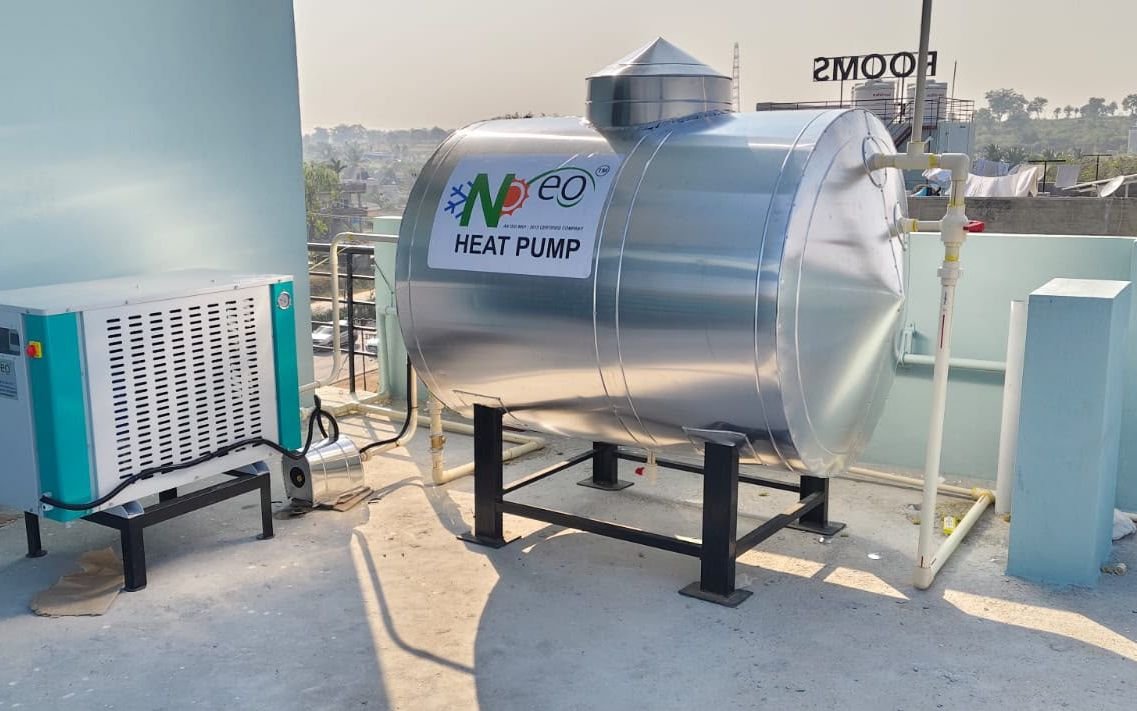

Buffer Tanks
